Navigator 520

Navigator 520

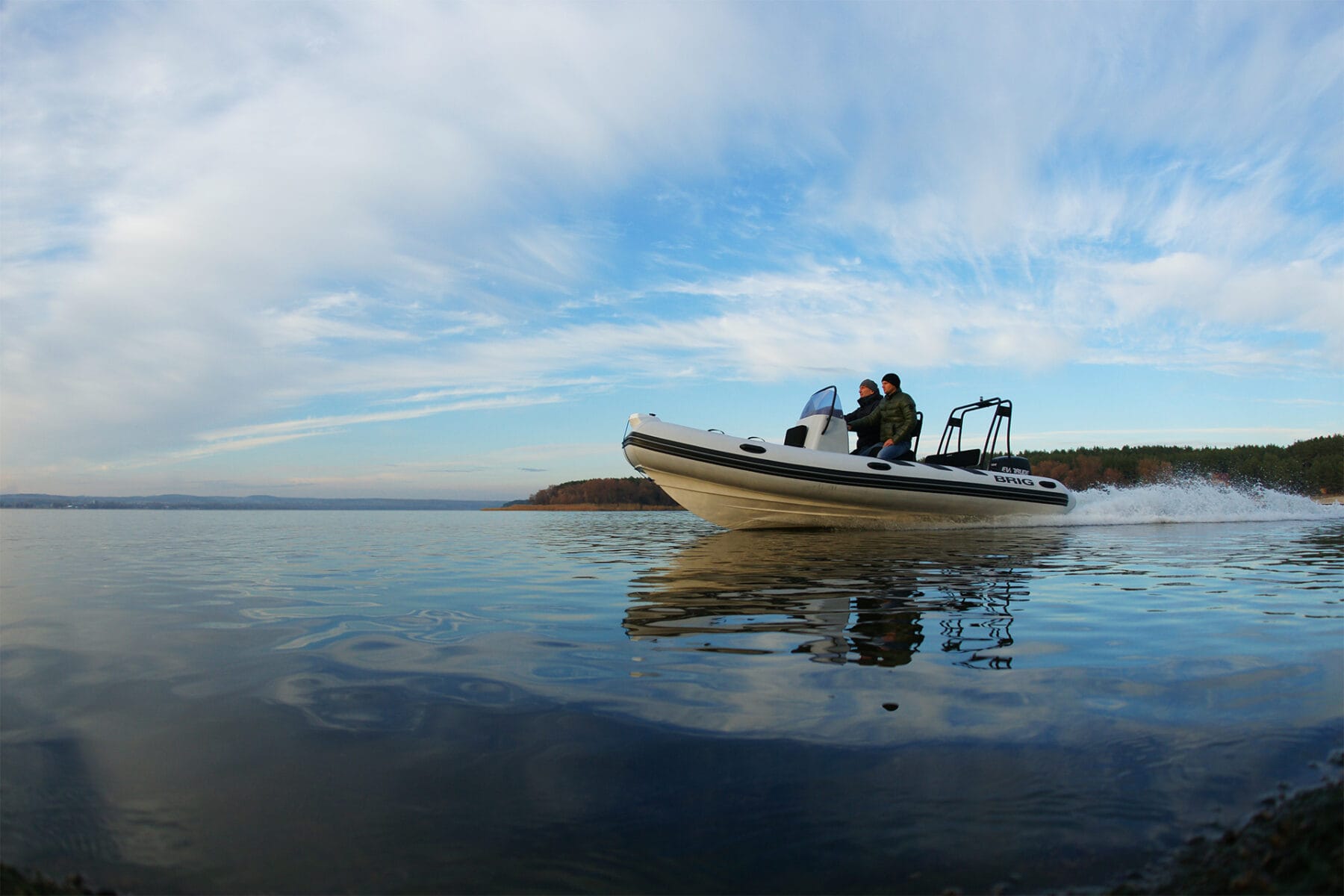

The Navigator 520 is the latest edition to the highly-regarded Navigator series and is designed for outgoing, active families looking to expand their boating horizons and take on new challenges.The Navigator 520 is the ideal support boat for a sailing fleet or those who are seeking a safe and affordable family leisure boat

The Navigator 520 retains the generous 230 cm beam as its larger family members which along with the square bow and extra-wide tubes means you get exceptional sea-keeping capabilities, superb stability, comfort and a dry ride that you expect from a BRIG Navigator but in a more compact package.

Navigator 520

Specifications

Length
520
Width
230
Height
190
Tube diameter
50
No. of Chambers
5
No. of Persons
9
Weight of empty boat
440
Fully equipped weight
725
Maximum payload
1110
Minimum power
50
Recomended power
75
Maximum power
100
Design category
C
Fuel tank capacity
98
Engine shaft length
20”

Features

Deep V hull
Rubbing strake
Automatic bilge pump
Anti-skid deck surface
Safety handles & carrying handles
Battery container
Front and rear stowage lockers
2 paddles & foot pump
Battery isolation switch

Hull ventilation system
Repair kit
Fuel gauge
Twin self-bailing unit
Accessories bag
Wake/ski towing point
Built-in fuel tank with external deck filler
Owner’s manual
Front locker removable cushion
Front step-plate

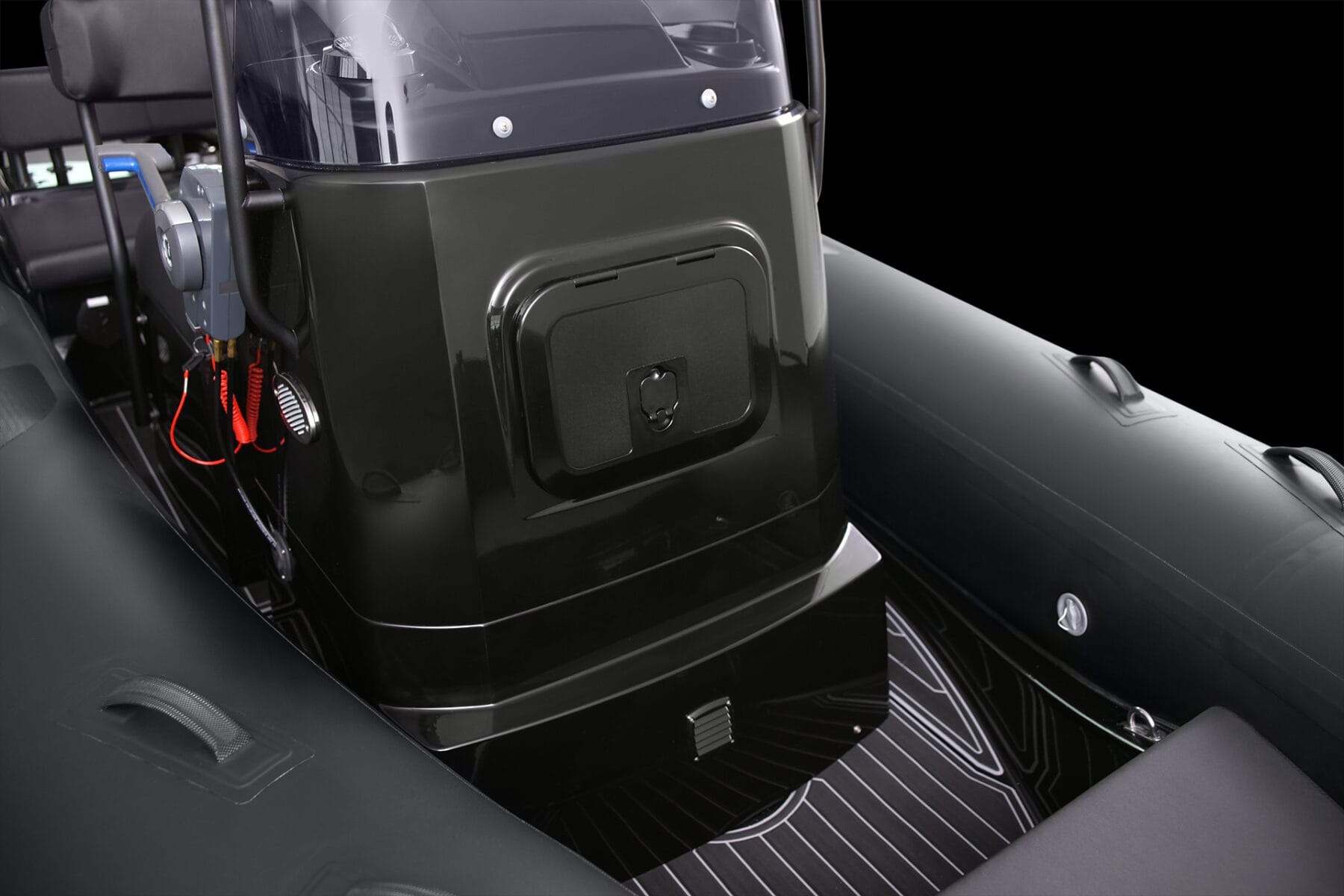

Steering console
Rear cushion with soft back
Front towing bow ring
2 x single jockey seat
Overall cover
Rear cleats (bollards)
Steering system (mechanical)
Stainless steel arch with navigation lights
Built-in davit lifting points
Steering wheel

Options

Steering system (Hydraulic)
Ski towing point

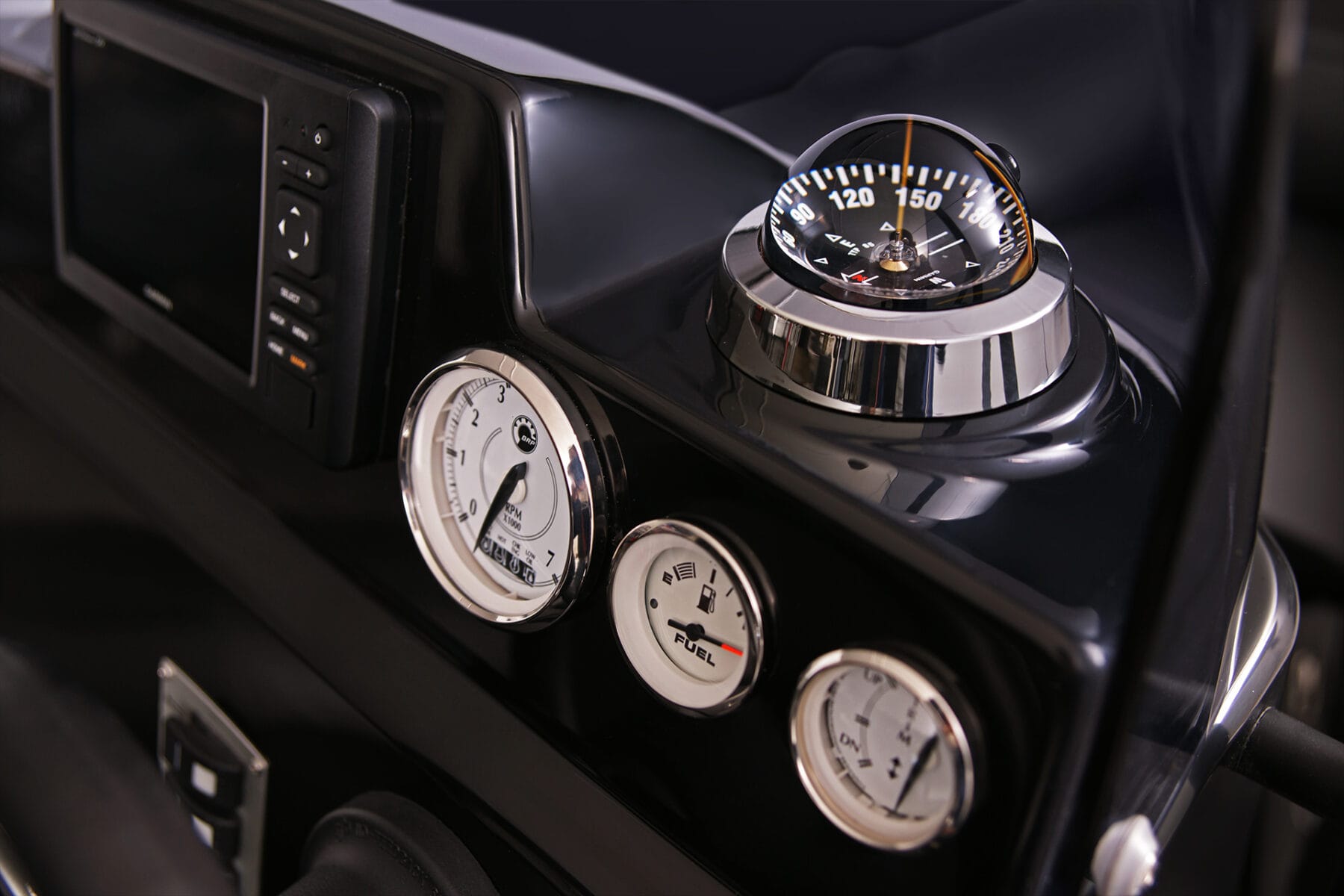

Marine compass
Overall cover
Lifting slings
Console cover
Stainless steel arc with navigation lights
Bimini/Suntop
Hypalon ORCA Fabric
